TM Robot connection

Q: How can I connect to the TM robot?

1. Remote connection:

If you want to connect remotely with a laptop you need to be running the same version of TM Flow software as on the controller.

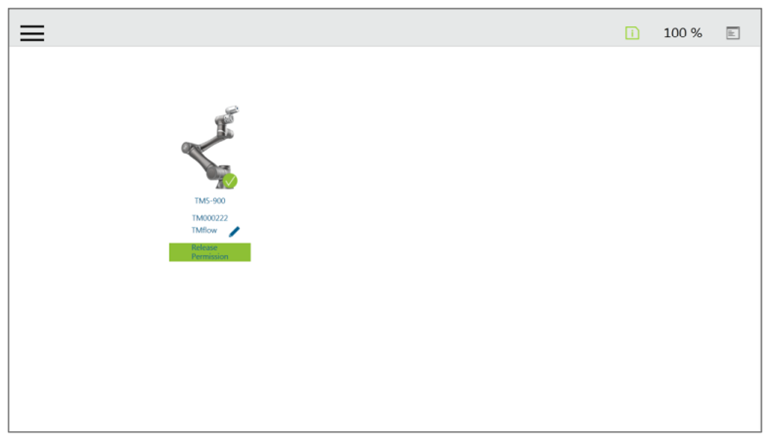

Please click the upper left corner to refresh the robot list
The robot that can be connected will be displayed in the robot list.

After the connection is completed ,the symbol in the lower right corner of the robot can be

seen Login can be started after the connection is completed.

After login is completed, click the “Get Control" button below the robot to get control. To release the

control, click “Release Control" button again to release control.

2. Local connection:

If you want to connect directly with the control box you need a monitor, keyboard, and mouse.

After login, click the “Get Control" button below the robot to get control. To release control,

click “Release Control" button again to release control.

Date/Revision History

First review 09/09/2024 V1.0

2nd review 01/07/2025 V1.1

Author:

Javier Romo, Technical Support Engineer.

References

Software Manual TMflow:
