Summary/Issue Description
There are several possible combinations and assignment relationships between the slave buttons and the master unit outputs.
Root Cause
It is often necessary to determine whether a single slave button can be assigned to multiple master unit outputs, or whether the same output can be activated by multiple slave buttons.
Solution
Assignments can be made between up to 8 slave buttons and 8 master unit outputs. Duplicate assignment is supported, allowing a total of 8 × 8 = 64 assignment patterns.
- Multiple slave buttons can be assigned to the same output.
- A single slave button can be assigned to multiple outputs of the master unit.

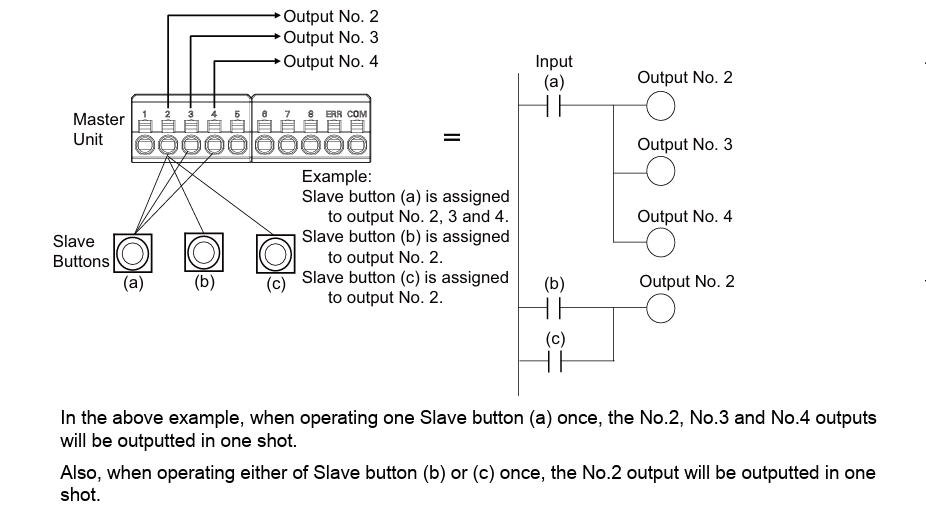

Example of possible combinations
Date/Revision History
First review 9/23/2025 V1.0
Second review 9/25/2025 V1.1
Author:
Mario Ponce, Tech Support Frontline Engineer
