Q: What are the key characteristics to evaluate when choosing a photoelectric sensor for a system?
A: The following characteristics should be considered when selecting a photoelectric sensor.
Detection Method: Sensors can operate using through beam, retro reflective, or diffuse detection.

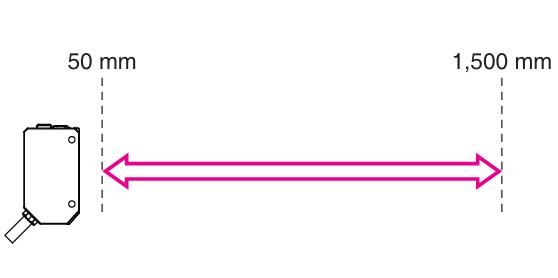

Sensing Range: How far the sensor can reliably detect objects.

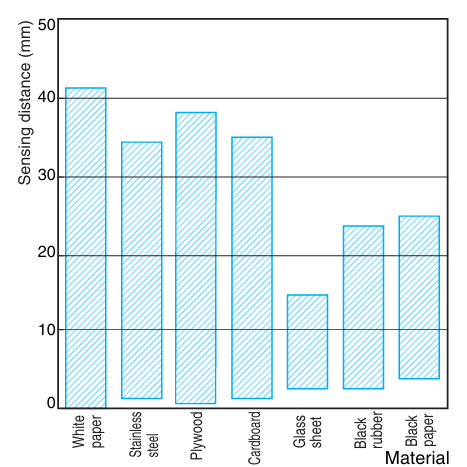

Object Characteristics: Object size, color, surface finish, and transparency affect detection. For example, shiny or transparent objects may need polarized retro-reflective sensors.
Environmental Conditions: Dust, moisture, vibration, temperature changes, and strong ambient light can affect performance. Check the sensor’s protection rating to ensure it can withstand these conditions.
Response Time: The speed at which the sensor reacts to the presence or absence of an object.

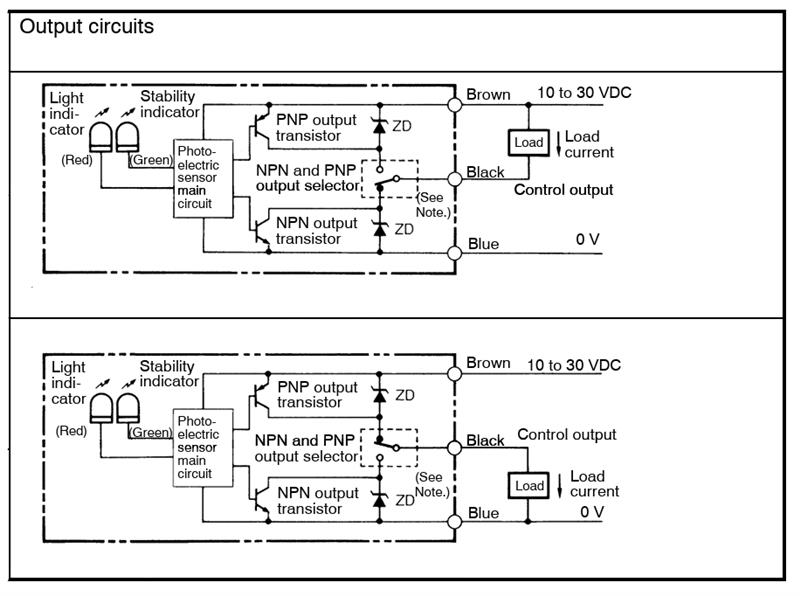

Output Type: Choose a sensor output compatible with your system, such as NPN, PNP, analog, or normally open/closed contacts. Correct output ensures smooth integration.

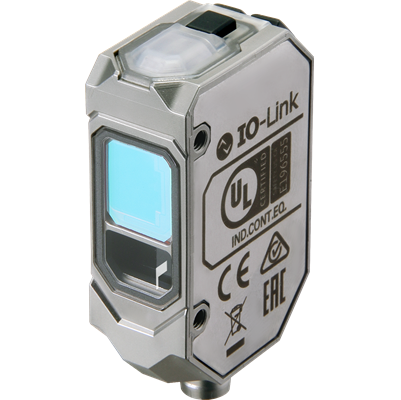

Size and Mounting Style: Consider the sensor’s dimensions and housing style (cylindrical, rectangular, compact) to ensure proper installation.
Date/Revision History
First review 09/25/2025 V1.0
Second review 09/26/2025 V1.1
Author:
Hector Vega, Technical Support Engineer
