Q: What are the OEM and Factory Part Numbers for NX1P2 Replacement IO Blocks?
A: The OEM and Factory Part Numbers are different depending on the full part number of the NX1P2 controller.

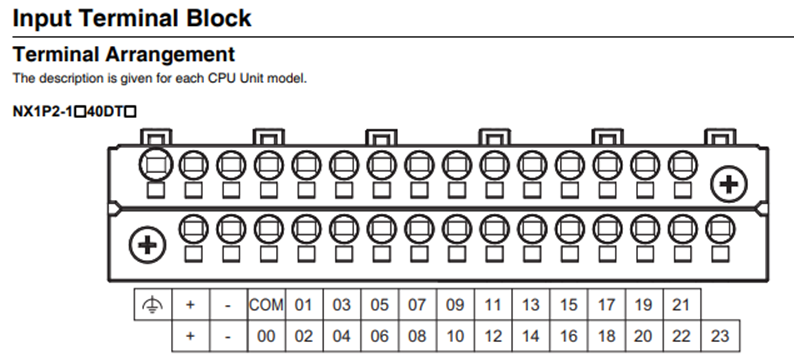

Input Terminal Block for NX1P2-1*40DT(-1)
OEM Part Number: TB-KA-30P-AS2
Factory Part Number: 2606033-2

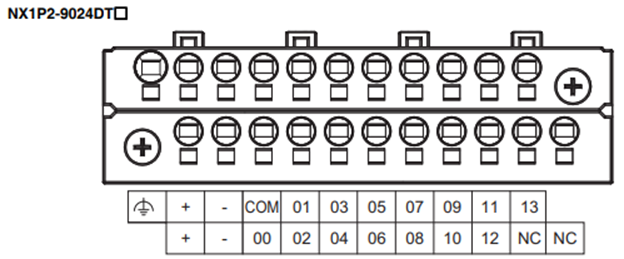

Input Terminal Block for NX1P2-9024DT(-1)
OEM Part Number: TB-KA-22P-AS2
Factory Part Number: 2606031-6

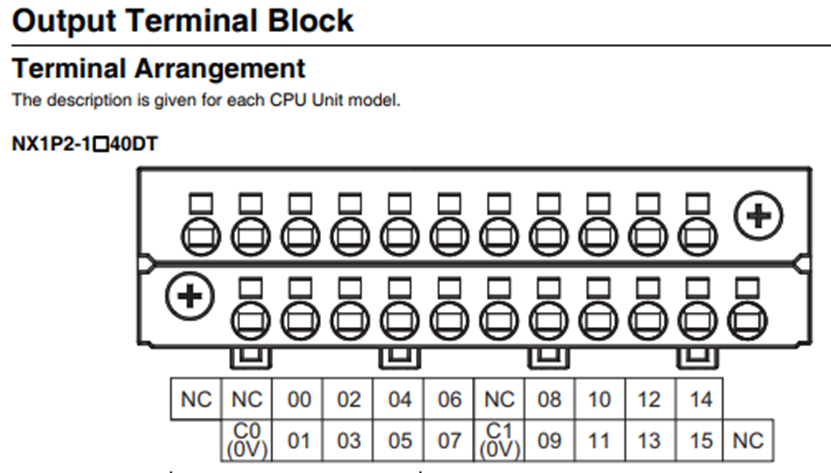

Output Terminal Block for NX1P2-1*40DT(-1) and NX1P2-9*24DT(-1)
OEM Part Number: TB-KA-22P-AS1
Factory Part Number: 2606030-8
Date/Revision History
Submitted for review 1/23/2025
Author:
Ed Gallagher, Technical Support Specialist
References
Internal Correspondence from PMM
