Q: Can One Inverter Drive Multiple Motors?
A:
Yes, it is possible!
To ensure proper operation, select an inverter with a rated current that is greater than or equal to the total rated current of all connected motors, multiplied by a safety factor of x 1.1 (for continuous operation).

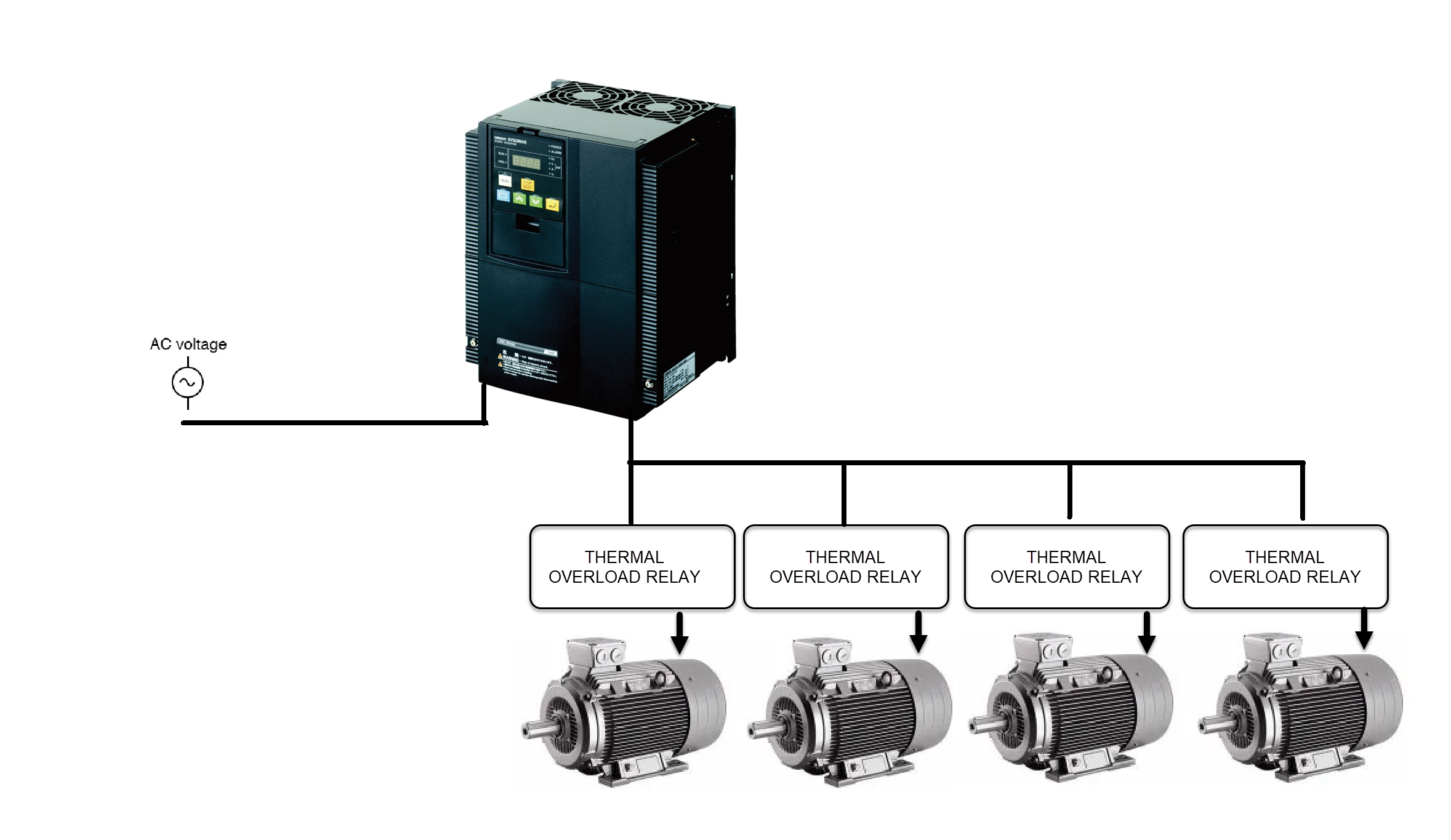

Additionally, verify that the maximum load remains within the inverter's overload capacity. Since built-in thermal protection cannot be used in this setup, it is essential to install a thermal relay for motor protection on each individual motor.
Date/Revision History
First review 01/29/2025 V1.0
2nd Review 02/07/2025 V1.1
Author:
Aimee Rivera, Technical Support Engineer
