Q: How can I install communication software and drivers for the STC-HD93 camera?
A:
Link to download the software for STC-HD93 DVI cameras:
Website Link: https://sentech.co.jp/en/data/software/
Access Key: AxkUv4grnJcO

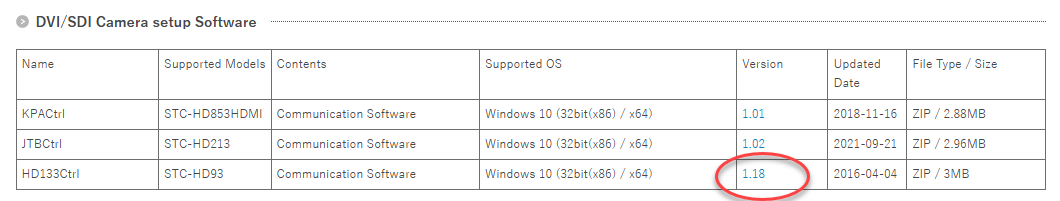

Please select the "Software Downloads" icon and then scroll down to the "DVI/SDI Camera setup Software" From here, you can download the software for Windows or Linux. Either package contains the driver.

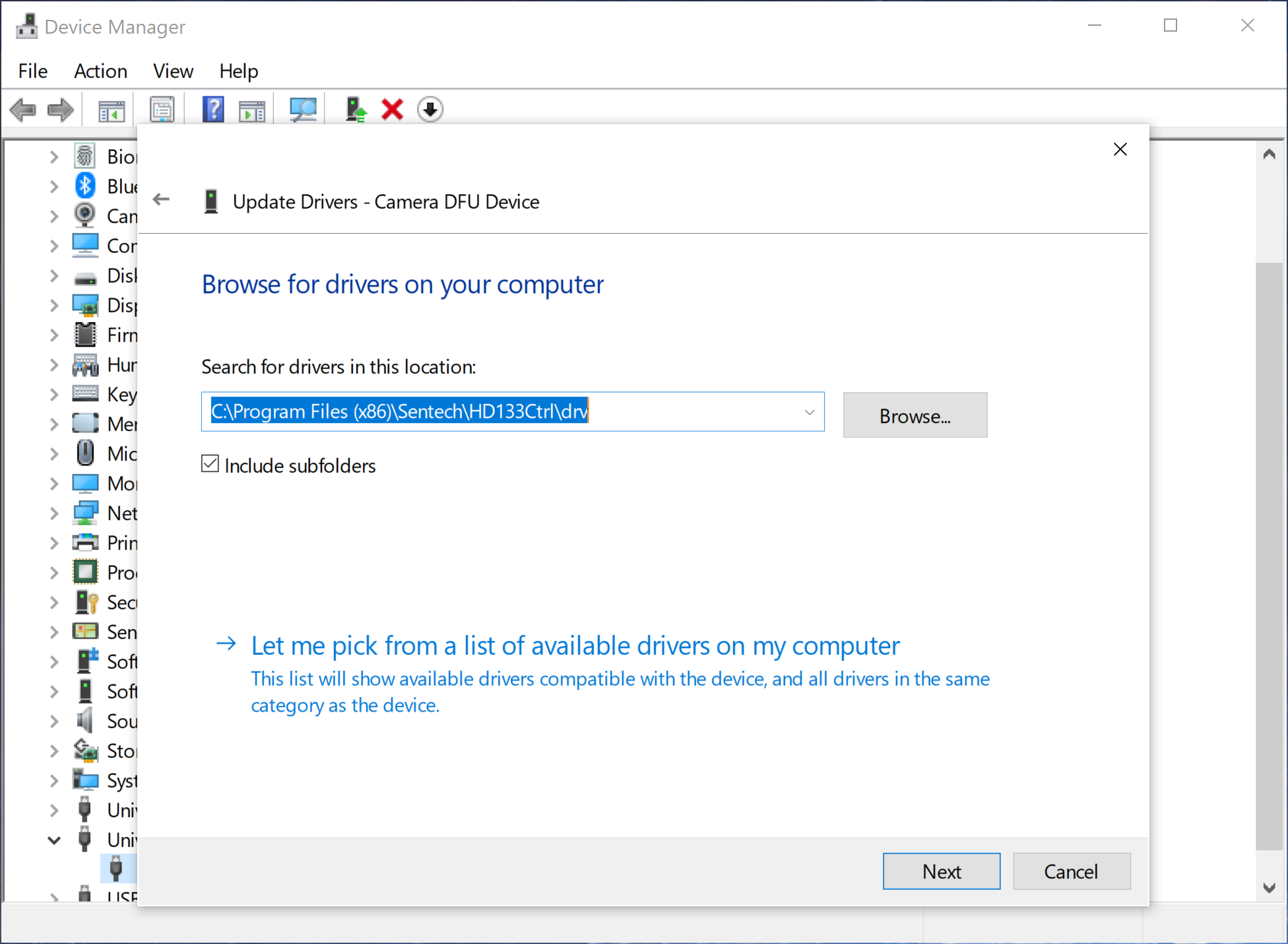

When you connect the JIG-USB-HD communication USB cable, you can update the drivers through Device Manager.

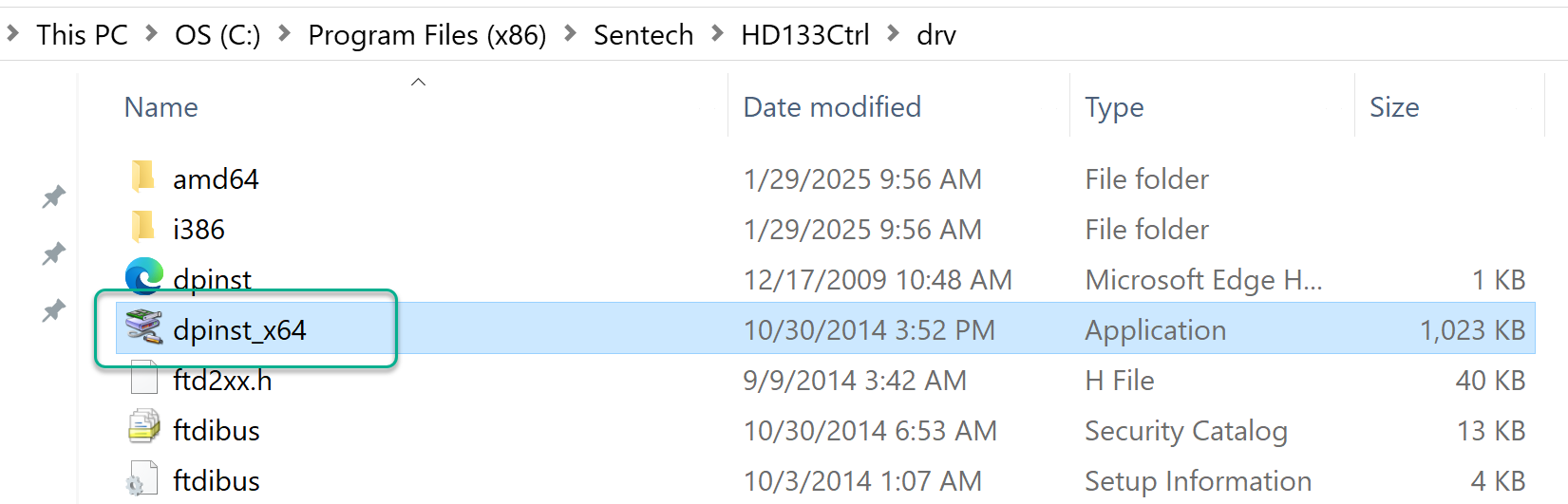

All necessary drivers are automatically installed along with the software and can be found in the following locations:
For 32-bit operating systems:
C:\Program Files\Sentech\HD133Ctrl\drv
For 64-bit operating systems:
C:\Program Files (x86)\Sentech\HD133Ctrl\drv
One installed, unplug the Jig and then reconnect to finish the installation.
If you encounter any issues, ensure that the software is correctly installed and that your system recognizes the camera and USB cable.
Date/Revision History
First review 01/09/2025 V1.0
2nd Review 02/05/2025
Author:
Aimee Rivera, Technical Support Engineer
