Note: For this guide we will use model name V430 which is the same as the older ID-40 camera pinout/fit/form/function
Wiring the Sensor

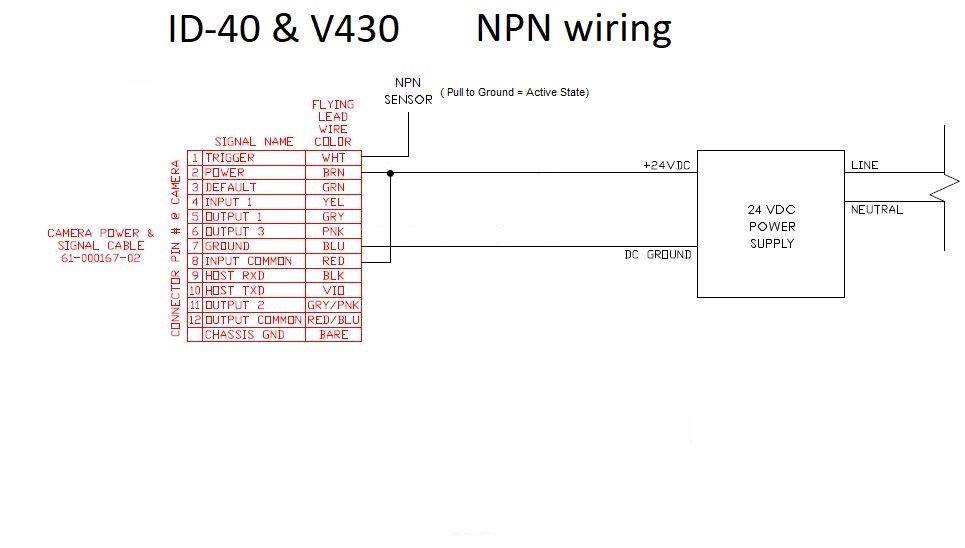

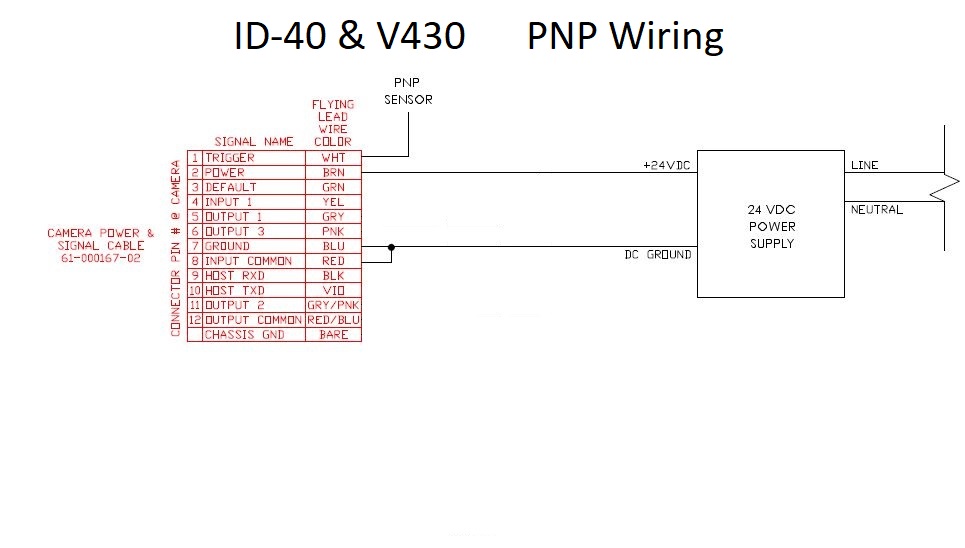

Input Common will be connected to either the 24V+ pin or Ground pin on the V430. Once that is done the Trigger pin will need to receive the opposite signal of whatever is connected to Input Common. So if Input Common is connected to the 24V+ pin on the V430, the Trigger pin would need to be pulled to Ground, and vice versa.
Date/Revision History
First review 02/28/2025 V1.0
Author:
Brian Keenan, Technical Support Specialist
