TG- V450-H/HS-360x - Extend Output Format Functionality

CONFIDENTIAL – INTERNAL USE ONLY

Purpose

Extend Output Format Functionality with Zebra’s 123Scan Software by Creating a Configuration Barcode

Problem Explanation/Objective

This guide will describe how to create a custom configuration barcode to extend the HS-360x handheld scanners Output Formatting functionality with a configuration barcode created from Zebra’s 123Scan software.  The use of Zebra’s 123Scan configuration barcodes are only necessary if an application requires setting configurations that are not available in the WeblinkPC software.

This process will utilize Zebra’s 123Scan software.  This guide will also use an example configuration setting of modifying the output data string to help describe the necessary steps to create the custom configuration barcode.  The result will be a custom configuration barcode that configures the handheld scanner to output the first eight digits of the scanned barcode’s data.

Please do not use the Zebra 123Scan software if it is not necessary.  The Zebra 123Scan software is not supported by Omron.

Supported devices

• V450-H  Wired/Wireless
• HS-360x Wired/Wireless

Requirements

• V450-H  Wired/Wireless
• HS-360x Wired/Wireless
• Zebra 123Scan Software

Procedure

1. Run Zebra’s 123Scan software.

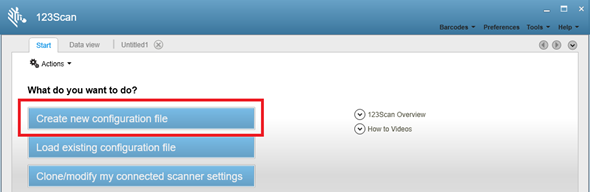

2. Select ‘Create new Configuration file’.

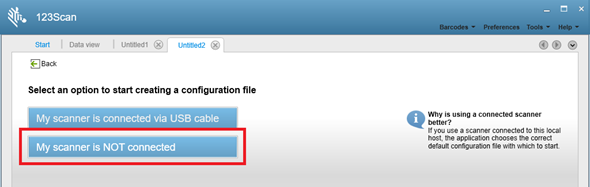

3. Select ‘My scanner is NOT connected’.

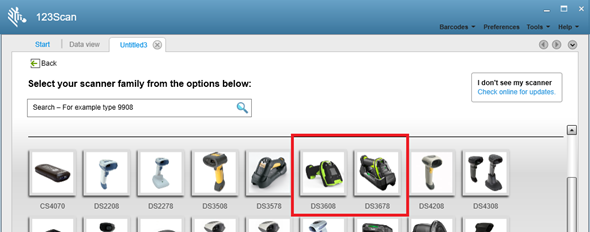

4. Select DS3608 or DS3678 for HS-360X based readers.

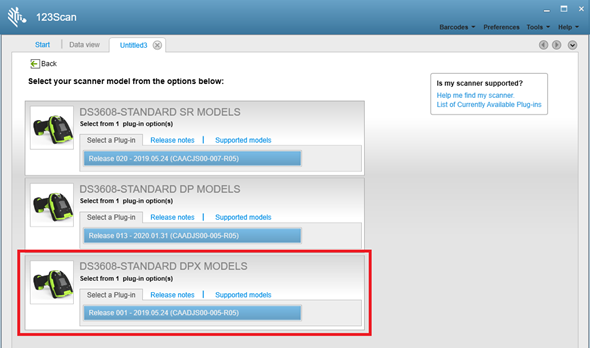

5. Select DS3608-Standard DPX Models.

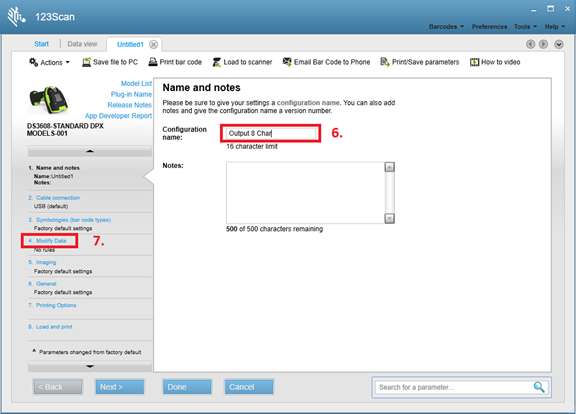

6. Name your configuration file – you may want to save it for later.
7. On the left hand side, you will see the ‘Modify Data’ section. Click on ‘Modify Data’.

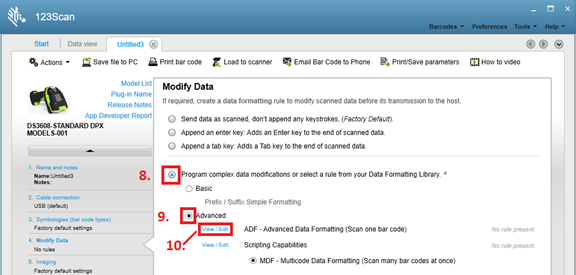

8. Select ‘Program complex data modifications or select a rule from your Data Formatting Library’.
9. Select ‘Advanced’
10. Click on ‘View / Edit ADF – Advanced Data Formatting’.

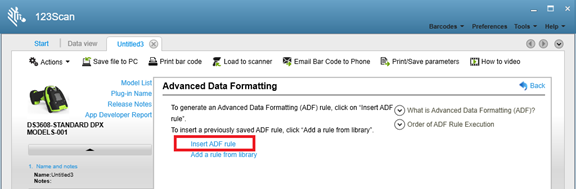

11. Click on ‘Insert ADF rule’.

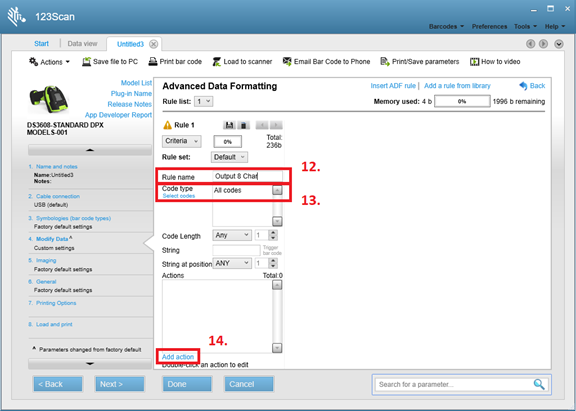

12. Name the rule (i.e. ‘Output 8 Chars’).
13. Select the Code Type (I left it ‘All Codes’).
14. Click on ‘Add Action’.

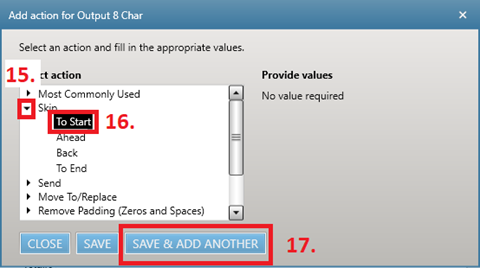

15. Expand the ‘Skip’ section.
16. Select ‘To Start’.
17. Click on ‘SAVE & ADD ANOTHER’.

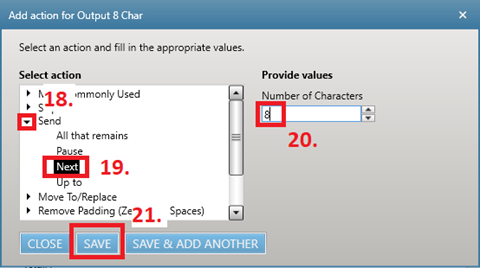

18. Expand the ‘Send’ Section.
19. Select Next.
20. Enter the number ‘8’ into the “Number of Characters” input box.
21. Click on the ‘Save’ button.

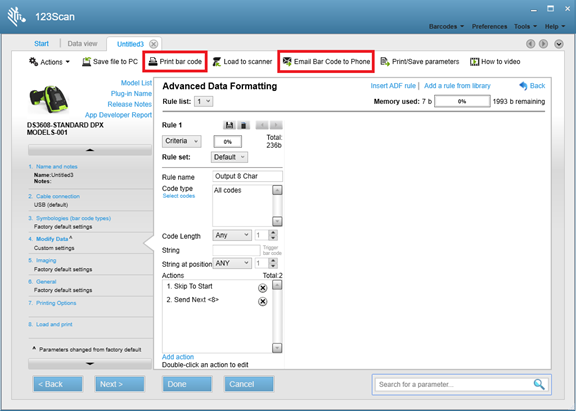

22. From here, you can export the configuration barcode by clicking on either ‘Print bar code’ or Email Bar Code to Phone.  You can exit the software when finished.

Provide the generated configuration barcode to the customer.

Example Output:

Date/Revision History

Published 7/16/2025

Author:

Anthony Rosario, Technical Support Specialist
