Q: What is the difference between Flicker Off start and Flick On start?
A: A twin timer means the unit allows you to set two independent times: tON (ON time) and tOFF (OFF time). In the H3CR-F, this is done using two dedicated knobs (orange for ON and green for OFF) plus unit/scale selectors for each time.

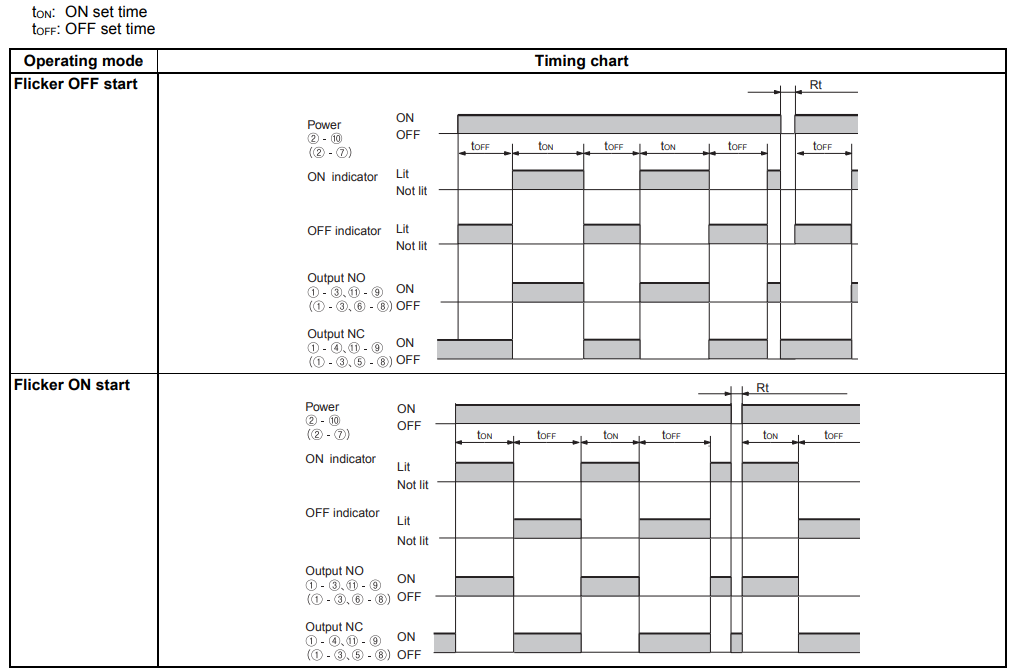

Flicker OFF start (Flick OFF):
When power is applied, the output starts in OFF and first runs tOFF. Then it switches to ON for tON, and repeats the cycle. This behavior corresponds to models H3CR-F / H3CR-F8 (without the “N” suffix).Flicker ON start (Flick ON):
When power is applied, the output starts in ON and first runs tON. Then it switches to OFF for tOFF, repeating the cycle. This behavior corresponds to models H3CR-FN / H3CR-F8N (with the “N” suffix).
Date/Revision History
First review 9/22/2025 V1.0
Second review 9/25/2025 V1.1
Author:
Mario Moreno, Technical Support Engineer
