Q: Is it possible to perform a factory reset on the H5CC timer?
A: The H5CC Timer doesn't include a factory reset function. Since there are not many parameters to start with, this function was never added to the timer. However, each parameter can be manually set to factory default settings.
Procedure:
- Refer to the official H5CC Timer datasheet.

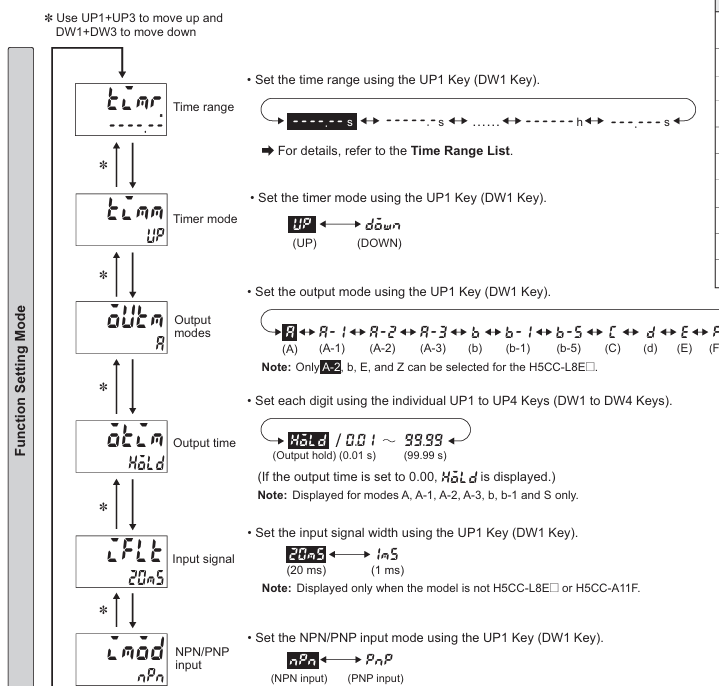

- Switch the timer from Run Mode to Function Setting Mode by pressing UP1 + UP3 or DW1 + DW3 simultaneously for 2 seconds.
- In the Function Setting Mode, manually change the current settings of each parameter to factory default settings. (In the datasheet, factory default values are marked with a black box).
- Once all parameters match the values indicated by the black boxes in the datasheet, the manual factory reset is complete.
Date/Revision History
First review 9/23/2025 V1.0
Second review 9/25/2025 V1.1
Author:
Mario Ponce, Tech Support Engineer
