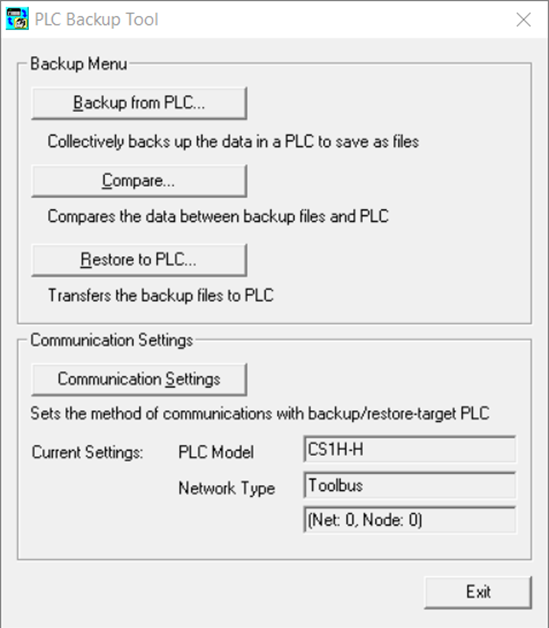

Q: What are the applicable units to use the PLC Backup Tool
A: The PLC Backup Tool allows customers to create a backup file that saves all of the data that has been transferred to the PLC, which makes a replacement easier because it only needs to transfer the backup file to the new PLC again, restoring the system and avoiding long line downs.
Not all the PLC series are applicable to use the PLC Backup Tool, only the listed below:
•CS series, all models and all versions.
•CJ series, all models and all versions.
•CP1H series, all models and all versions.
•CP1L series, all models and all versions.
•CP1L-E series, all models and all versions.
•CP2E series, all models and all versions.
•CP2E-N series, all models and all versions.
For the rest of the series acceptable to be programmed with CX-Programmer, the PLC Backup Tool function is not permitted.
Date/Revision History
First Review: 12/20/2024 V1.0
2nd Review: 01/21/2025 V1.1
Author:
Karla Flores Avila, Technical Support Specialist
