Q: How to include the comments section when importing or exporting a project in CX-Programmer?

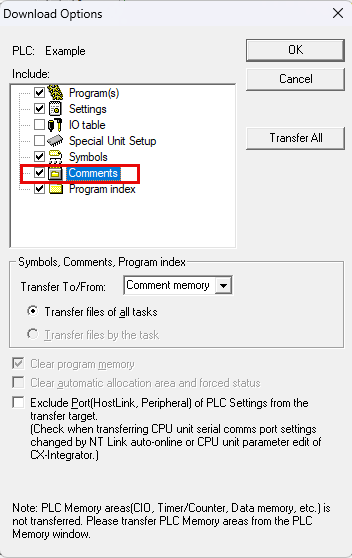

A: When transferring a project to a PLC, verify that the "Comments" checkbox is selected.
Note 1: When transferring from the PLC, comments that do not appear were likely never uploaded to the PLC.
Note 2: Comments cannot be retrieved if they were not saved in the source program; the original program must be requested.
Note 3: It is recommended to keep a backup of the original PLC program, because performing a transfer without comments will result in their loss.
Date/Revision History
First review 9/23/2025 V1.0
Second review 9/26/2025 V1.1
Author:
Mario Ponce, Tech Support Frontline Engineer
