TN - Usage of PF key on E5@C Series.

Modified on Fri, 7 Feb at 10:43 AM

Summary/Issue Description

This note addresses connectivity and the usage of the PF key located in front of the E5@C controllers.

Root Cause

On the new E5@C Series, we will find a button labeled as “PF”.

This is a programable button that clients most of the time don’t know what they can do with it.

Solution

First of all, we need to know that his parameter is located on the Advance function Level it shows as:

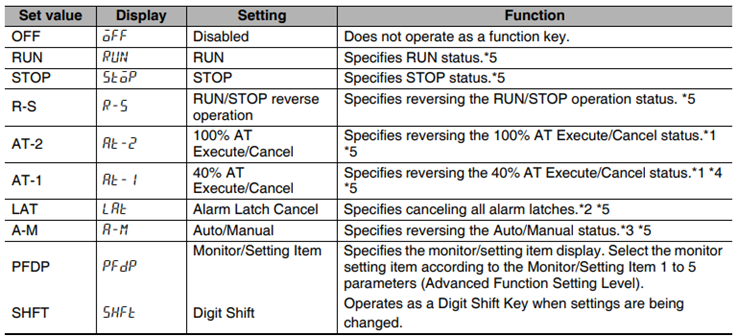

This parameter has some options that depending on the application you can press the button and the configuration you give it would do the following actions:

Date/Revision History

First review 12/09/2024 V1.0

2nd review 01/13/2025 V1.1

3rd review 01/22/2025 V1.2

Author:

Diego Roses, Technical Support Engineer

References

https://assets.omron.com/m/4e1b4d0b0c8a1ff1/original/E5_C-Digital-Temperature-Controllers-Users-Manual.pdf, Page 248
