Purpose

This guide explains how to properly set up the NB and the NX PLC to communicate with each other over Ethernet Communication.



Objective


The NB HMI series uses a separate software to develop their projects. Is commonly used with another vendor's PLC or with the C series, however, the NB has the capability to connect with the NX/NJ PLC series too.


Supported devices

  • NB HMI Series
  • NX1 PLC Series
  • NB Desginer V1.43 or higher
  • Sysmac Studio



Requirements

  • NB Designer Software
  • Sysmac Studio Software
  • NX1 PLC Series
  • NB HMI Series
  • Ethernet cable Cat5 with RJ45 connector on both sides.
  • Ethernet hub (optional)



Procedure

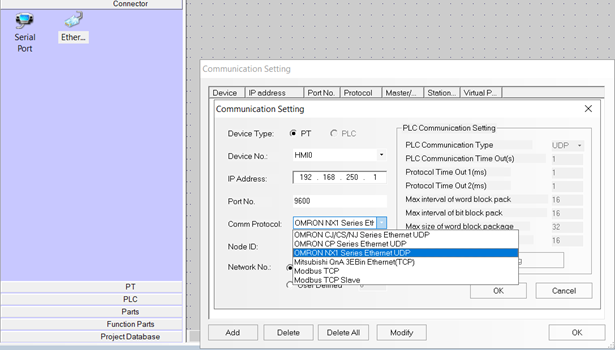

Step 1: Go to the NB designer and add an Ethernet Connector, on the Communication Settings Window, select Comm Protocol as Omron NX1 Series Ethernet UDP ->

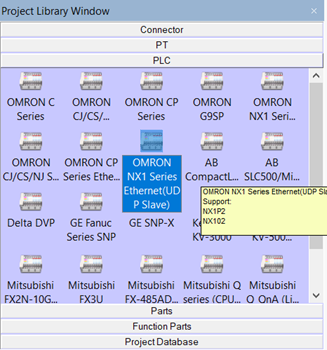

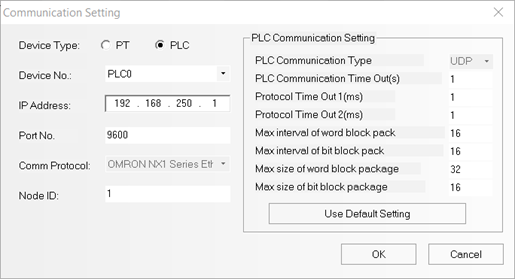

Step 2: Drag and drop the Driver Omron NX1 Series Ethernet (UDP Slave), add another Ethernet Port select PLC and change the IP address to the PLC IP address ->

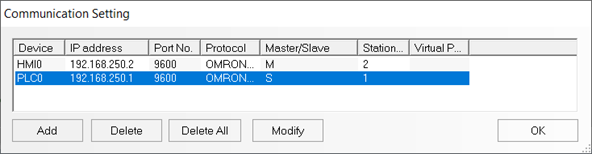

Step 3: Once both devices are all set you must have the Communication Settings as follows:

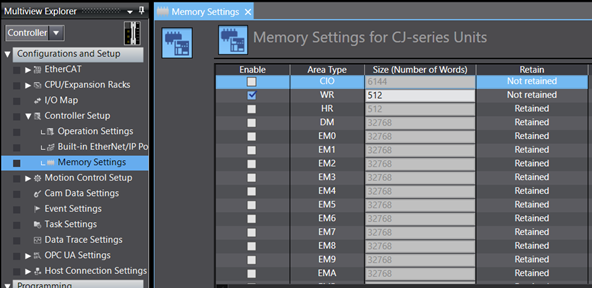

Step 4: Go to Sysmac Studio and create a new Project, for this example, we will use an NX102 PLC, then under Configurations and Setup -> Controller Setup -> Memory Settings, check the WR Area:

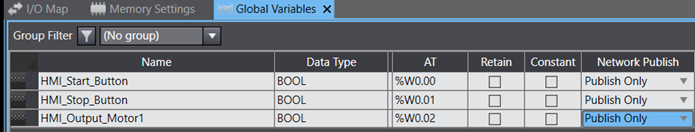

Step 5: Create the global variables and on the AT column use the %W to assign a specific memory section to share with the NB HMI, you need to Publish the variables too:

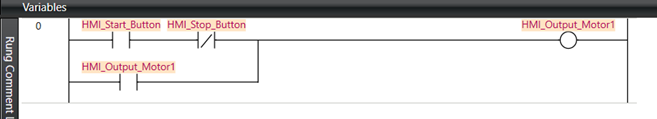

Step 6: Create your ladder program, using the HMI Inputs and Outputs variable assigned. Once the program is finished, transfer the program to the PLC:

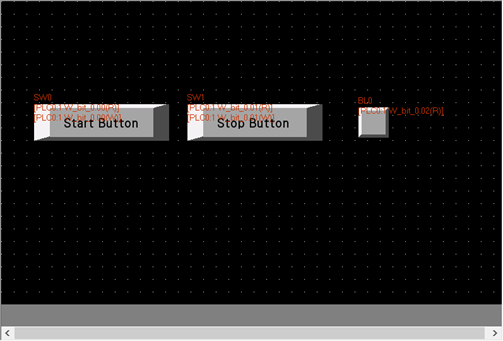

Step 7: Go back to the NB Designer and create the Objects that will activate the inputs on the PLC, use the W_bit or W Area to have access to the PLC variables. When the screen is finished transfer the project to the HMI and test it:




Date/Revision History

First Review 12/23/2024 V1.0

2nd Review 01/21/2025 V1.1


Author:

Karla Flores Avila, Technical Support Specialist


References

Connecting a NB HMI to Sysmac NX1 controller over Ethernet
