TN - NX Built-in EIP Tag Set issue

Modified on Tue, 4 Feb at 3:08 PM

Summary/Issue Description

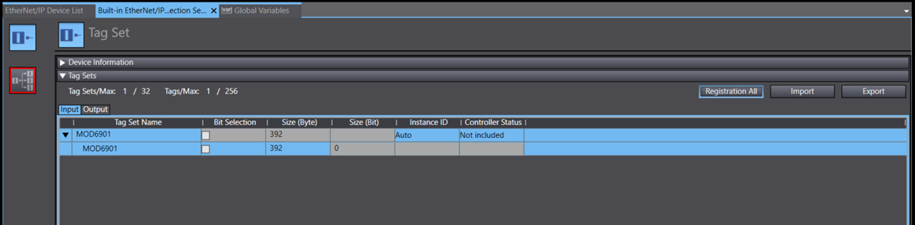

When configuring EIP Tag Data Link in Sysmac Studio, input or output tag is shown in pink, and the message "A network variable that is not registered in the variable table is used appears".

Root Cause

The variable is not registered in the global variables or the 'Network Publish' attribute is not configured as input or output.

Solution

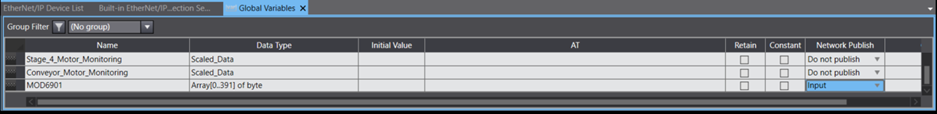

Create the variable in 'Global Variables' and set the 'Network Publish' attribute to 'Input' or 'Output' as needed.

Date/Revision History

First review 30/01/2025 V1.0

2nd review 02/04/2025 V1.1

Author:

Javier Romo, Technical Support Engineer.
