TN - MS-Connect 210. Wiring Switch to Unlatch Output

Modified on Mon, 10 Feb at 3:10 PM


Summary/Issue Description

The MS-Connect 210 does not allow the external membrane switches to be programmed for other uses.

In order to unlatch an output, you will need to wire a separate momentary switch to “Input 1” on the inside terminal(s) of the MS-Connect 210.



Supported Products

All readers that allow Output X = Latch mode 1 (unlatch on Input # 1 pin) where X is the number of the Output in the I/O section of the reader settings. Typically called Output 1, 2, or 3.



Solution

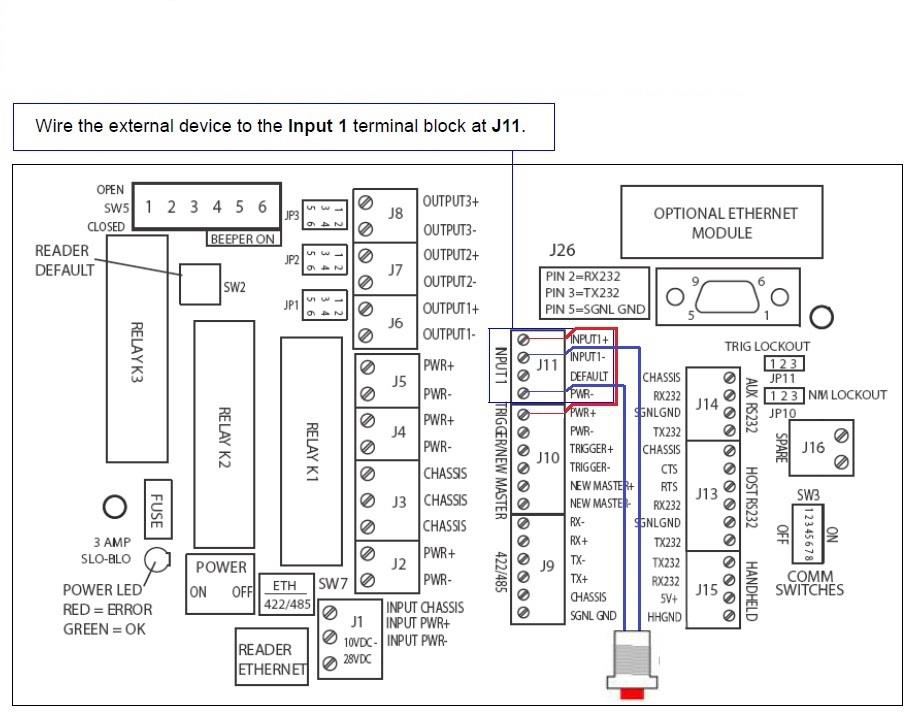

Here is a quick sketch showing the wiring of a switch to the terminals in the MS-Connect 210

The connections are as follows:

  • PWR+ to INPUT1+
  • PWR- to one side of the switch
  • INPUT1- to the other side of the switch

You may be able to remove one of the feed-throughs on the bottom of the MS-Connect 210 and install the switch in the opening to avoid having to run cable.





Date/Revision History

First review 2/8/2025 V1.0



Author:

Brian Keenan, Technical Support Specialist
