Q: Which lighting parameters can be adjusted on the LVS-9580 and LVS-9585 scanners?
A: The LVS-9580 does not offer multiple lighting options, its integrated light source remains on continuously whenever the scanner is connected to power.

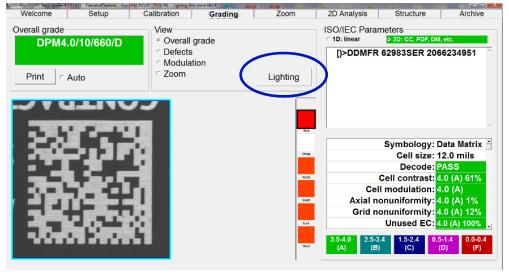

On the other hand, the LVS-9585 features configurable lighting settings, allowing users to adjust between different lighting types using the dedicated lighting control button under the "Grading" section.

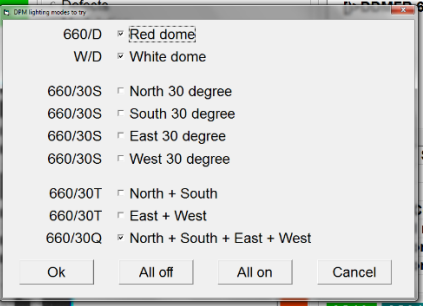

The default lighting modes are Red dome and 30 degree N + S + E + W. The operator may choose to add or subtract any of the lighting modes listed. The software will use this selection as the new default.
Date/Revision History
First review 10/30/2025 V1.0
Author: Hector Vega, Technical Support Engineer
