Purpose
To adjust the size of the FH/FHV Launcher software interface window. By default, the software window does not display in full screen, but it can be resized by following the steps outlined in this document.
Explanation
This document explains how to resize the FH/FHV Launcher software interface window, which defaults to a non-full-screen view.
Supported devices
Requirements
Procedure
How to adjust the size of the FH/FHV Launcher
1. Click the Windows Search bar icon.
2. Scroll down to OMRON, expand the folder, and select FH_FHV Launcher.
3. Once the program is running, the Main Window will appear after a successful connection.

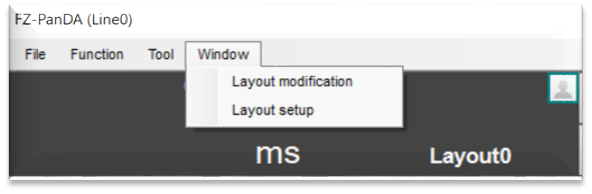

4. To modify the layout, select the Window tool from the toolbar.

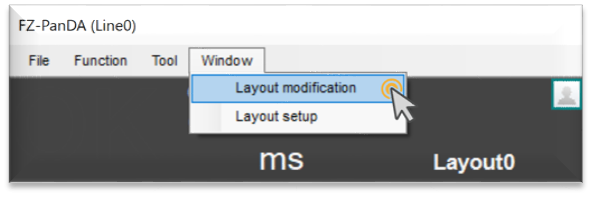

5. Click on Layout Modification.

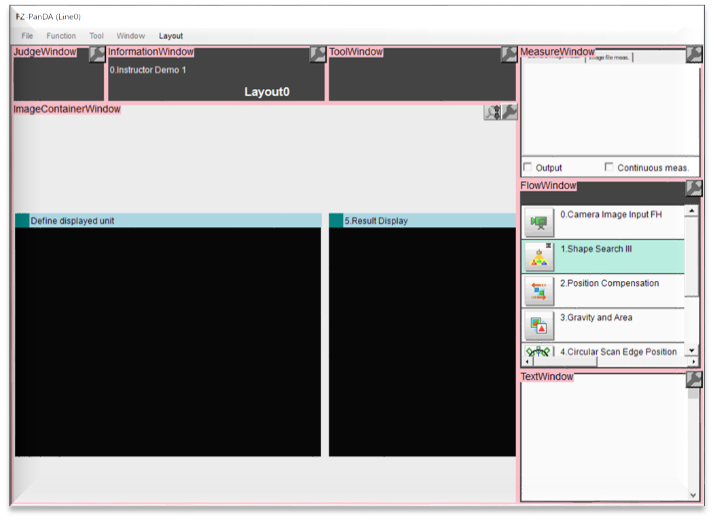

6. The window will now be outlined in pink/red, indicating it is in editing mode.
7. In editing mode, you can adjust the size of the main window and the boxes within the layout.

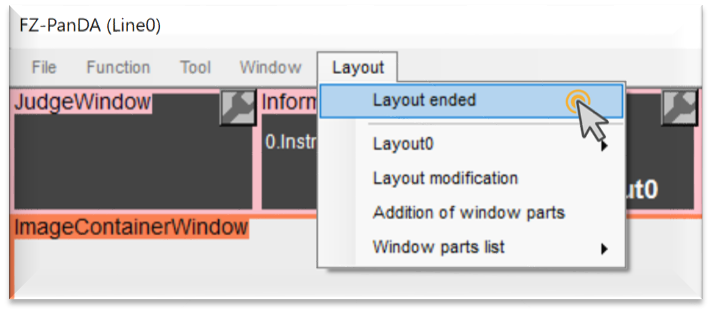

8. Done! After making the desired adjustments, a Layout menu will appear on the toolbar. Click on Layout and then select Layout Ended to save the changes successfully.
Date/Revision History
First review 9/06/2024 V1.0
2nd Review 01/15/2025
Author:
Aimee Rivera, Technical Support Engineer
References
FH-FHV Series Vision System Users Manual
