Purpose
The purpose of this document is to guide you through the process of saving the programs you have created for your FH/FHV vision system. This procedure ensures that you have a backup stored safely in your computer or in a location of your choice.
Supported devices
Requirements
Procedure
Creating a backup of the FH/FHV Vision System
1. Click the Windows Search bar icon.

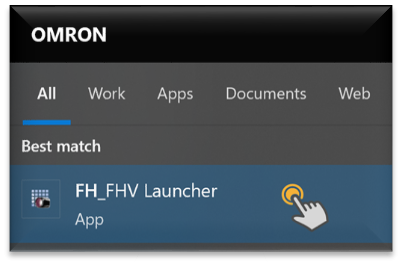

2. Scroll down to OMRON, expand the folder, and select FH_FHV Launcher.
3. Once the program is running, the Main Window will appear after a successful connection.

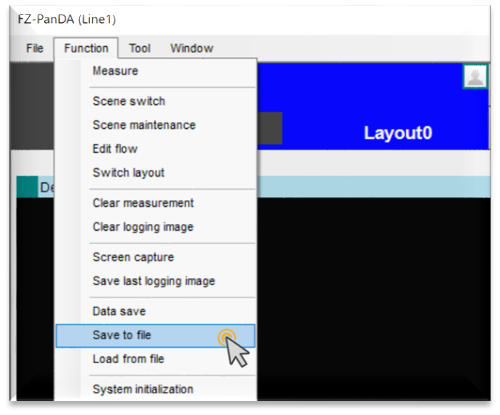

4. Click on the Function tool from the toolbar. Select Save to File to begin the save process.

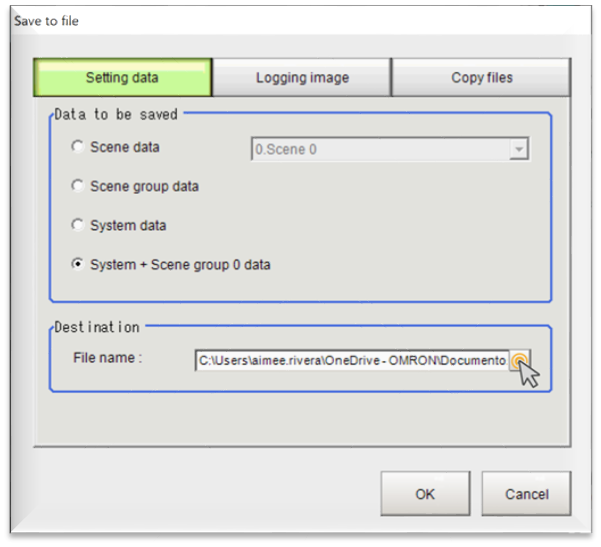

5. Choose Data to be Save In the dialog window, select the Program Data tab. You can choose to save the entire program or specific components.

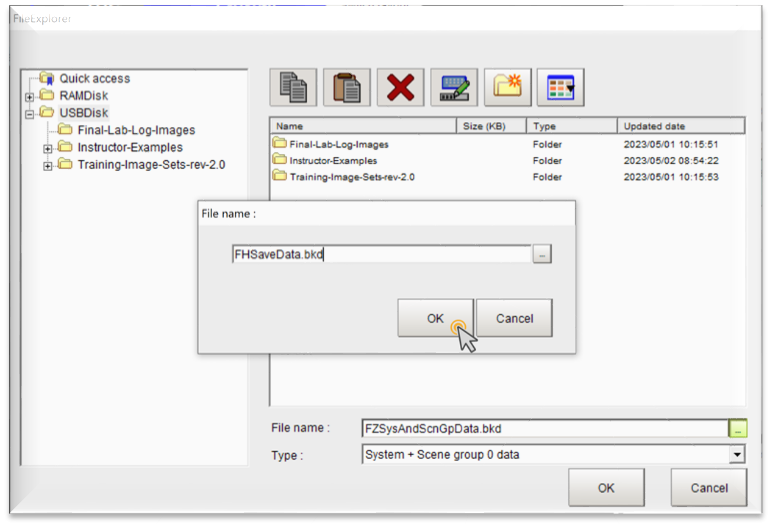

6. Set the File Name and Save Location. Browse your computer to choose the desired location to save the file. You can either select an existing directory or create a new one to store your backup.
7. Complete the save process by clicking OK to confirm the file name and save location. Wait for the system to finish saving the program data. Once completed, the process is finished.

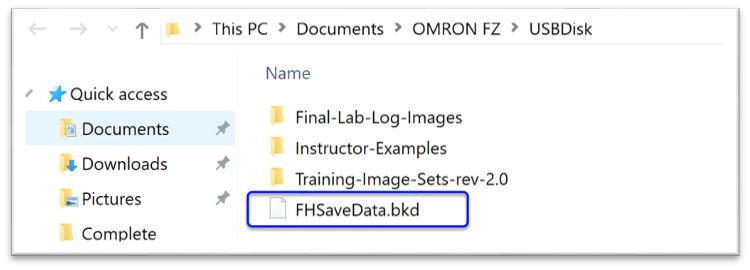

8. Done! Verify the Backup Navigate to the folder where you saved the backup file to confirm it was created successfully. It is recommended to store a copy of the backup in a secure location, such as cloud storage or an external drive, to protect against data loss.
Date/Revision History
First review 9/13/2024 V1.0
2nd Review 01/15/2025
Author:
Aimee Rivera, Technical Support Engineer
