NB-Designer system information

Q: How to mask system information 'PLC No Response: cc-pp-d' on an NB HMI?

A: NB-Designer provides the system information mask function which is controlled by the special

memories LW9296 (read/write) and each bit corresponds to one piece of system error

information, and the system error information will be masked when the corresponding bits are

set to ON. For example, LW.B9296.2 corresponds to the prompt information “PLC No

Response”

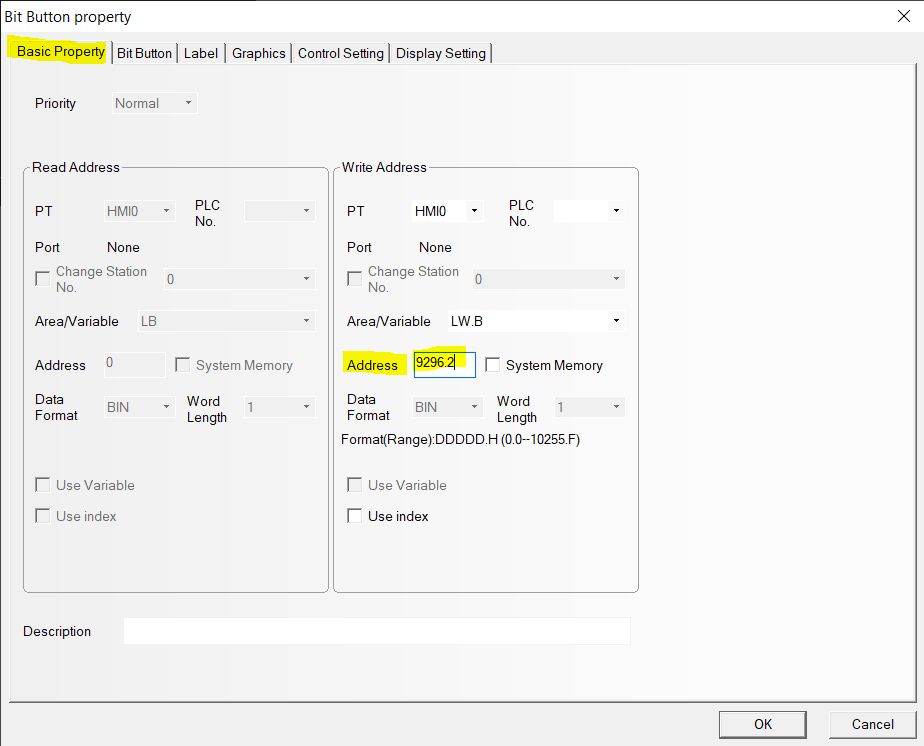

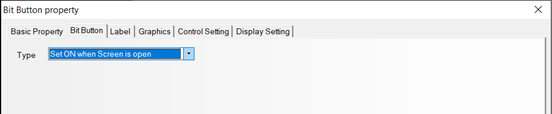

Note: Place Bit Button component and others in the screen which should be being masking of error display and specify [Set to ON when screen is open] for Type and specify LW.B9296.2 to On.
