TN - G9SP Quick guide for troubleshooting

Modified on Fri, 7 Feb at 12:34 PM

Summary/Issue Description

In this document, we can address the different issues that a G9SP can give a user, depending on what is failing on the controller.


Root Cause

G9SP controller applications often receive maintenance since they are safety equipment, and this can change on the application as equipment, programmatic, and or just unexpected errors provided directly by the controller and its internal circuits


Solution

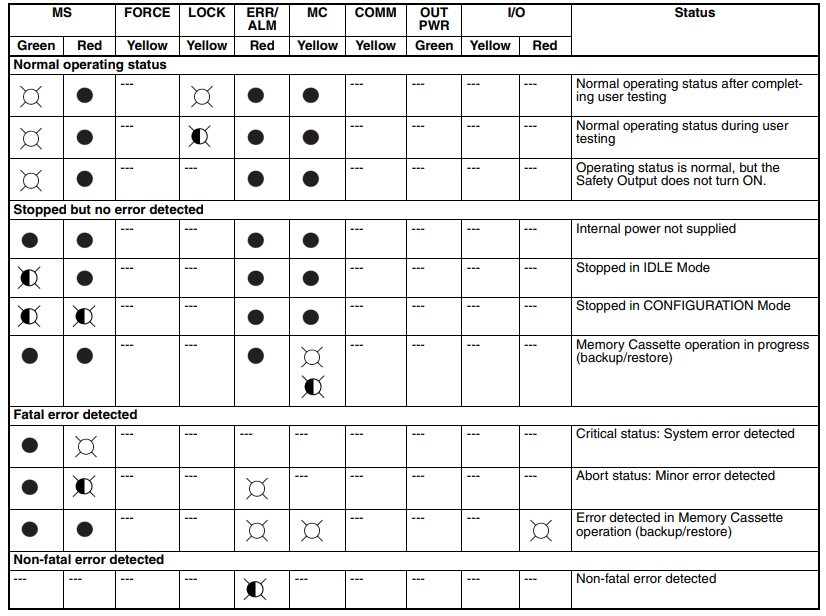

In this section, see the images below for the status and how to diagnose depending on the LED that is located in front of the equipment, notice which are ON, BLINKING, or OFF.


Depending on the error review pages 175 to 180 of the manual to review the solution.

https://assets.omron.com/m/102ae66f51ea120c/original/G9SP_OperationManual_en_201508_Z922-E1-05-pdf.pdf


Date/Revision History

First review 01/31/2025 V1.0

2nd review 02/07/2025 V1.1



Author:

Diego Roses, Technical Support Engineer


References

Manual - https://assets.omron.com/m/102ae66f51ea120c/original/G9SP_OperationManual_en_201508_Z922-E1-05-pdf.pdf
